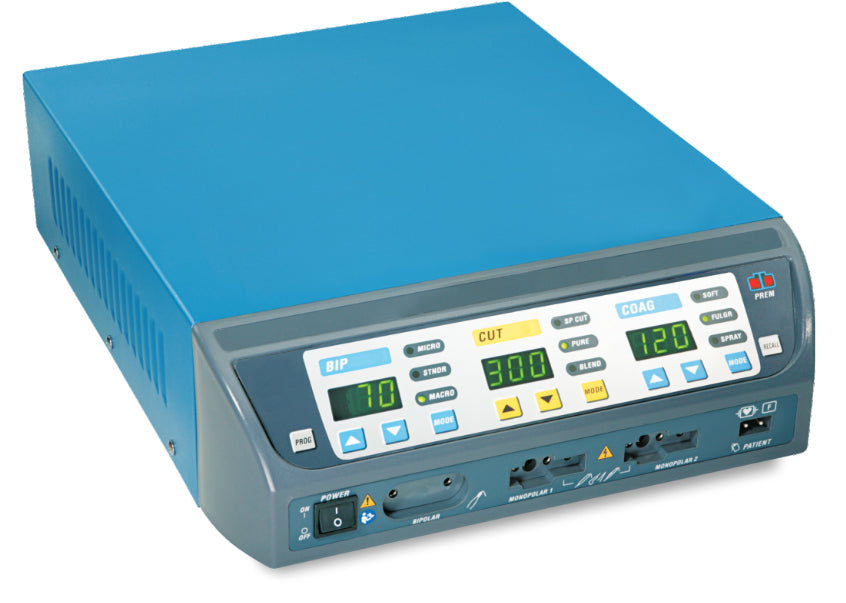

WHITTEMORE EAGLE ONE PREMIUM 300 WATT MONOPOLAR + BIPOLAR ESU (VETERINARY USE ONLY)

Monopolar AutoCut : Pure Sine wave 390 kHz
Sp Cut - Programmable Pulse or continues output,
         300 W at 300 Ω, CF 1.5
Pure - Continues output, 300 W at 300 Ω, CF 1.5
Blend - Bursts repeating at 29 kHz 55% ON cycle,
        200 W at 300 Ω, CF 2.5

Monopolar Coag : Damped Sine wave 460 kHz
Soft - Repetition Frequency 62 kHz, 120 W at 500 Ω, CF 5.0
Fulgurate LCF - Repetition Frequency 42 kHz, 120 W at 500 Ω, CF 6.2
Fulgurate HCF- Repetition Frequency 34 kHz, 120 W at 500 Ω, CF 7.0
Spray - Randomized Repetition Frequency 34 kHz < f < 50 kHz, 120 W at 500 Ω, CF 8.0

Bipolar : Pure Sine wave 390 kHz
Micro - Lower output voltage, 70 W at 100 Ω, CF 1.5
Standard - Medium output voltage, 70 W at 100 Ω, CF 1.5
Macro - Higher output voltage, 70 W at 100 Ω, CF 1.5

DESIGN STANDARD
Classification according to the EC- Directive 93/ 42/ EEC: Class IIb
General Safety Standards: IEC 60601-1-1, IEC 60601-2-2
EMI/EMC Compatibility Standard: IEC 60601-1-2
IS Safety Standard: IS 7583

LEAKAGE CURRENTS
• RF leakage current   • Monopolar : < 150 mA rms
                       • Bipolar : < 60 mA rms
•  Low Frequency leakage currents
               • Normal polarity, intact ground : < 10 μA
               • Normal polarity, ground open : < 50 μA

PREM SYSTEM
Measuring Frequency : 85 kHz ± 10 kHz
Measuring current : < 10 μA
Acceptable Resistance Range up to 40%
Dual Area PREM Patient Return Electrode : 5-135 Ω (Adaptive)
Single Area Patient Return Electrode : < 10 Ω

FEEDBACK SYSTEM
•  3 Microprocessor Controlled 6SENSE Technology
    with sampling rate above 4000 sense/second
•  Maximum output power deviation < 15% or 5 watts,
    whichever is greater at any setting with PER-98

INPUT POWER
Operating Voltage : 180-265 Volt AC, (other ratings available on request)
Max. Power input : 1000 VA,  Fuse : 4 A, UPS Backup : 1.5KVA
DIMENSIONS
L x W x H in cm - 45.0 x 35.5 x 11.5,       Weight in kg < 7.5

SENSE Technology : Maintain set power over wider range of tissue by Tissue Feedback Technology.
PREM : Patient Return Electrode Monitoring - Safety against the Patient Return Electrode site burns.
2SiCoag : Two Simultaneous coagulation output at a time with independent control.
Randomized SPRAY Coag : Homogeneous, superficial, faster coagulation over larger area.
Self Diagnosis : Ensure the ESU with accessories are safe for functioning & display Error Codes if any.
Bipolar Cut : Macro mode can be used for bipolar cutting with hooks and other cutting devices.
Upgradability : Argon Beam Coagulation, Ultrasonic Aspirator, Smoke Evacuator, Suction Irrigation module.
User Programmable : THIRTY Surgical Programs help in setting the system after power ON.
BiCoag Alarm : Audio feedback after completion of Bipolar Coag, reduces charring and sticking.
Pulse Cut : Tissue feedback Pulse Interval controlled Pulse Cut for Polypectomy & Papillotomy.
AutoBip : Automatic Start & Stop of Bipolar current by tissue sensing without foot switch activation.
Remote Power Settings : Change mode and power from sterile field by normal Handswitch Pencil.
Foot Switches / Pedals : Explosion Proof (Fire Resistance) and Water Proof Foot Pedals
Time Out Function (Optional) :  Automatically stops the HF output if prolong unintended activation.
Surgical Applications  :  Useful for wide range of  surgical application as : Plastic, Neuro, ENT, Spine,
Opthal, Laparo Surgery, Endo, GI, Ortho, Open & General Surgery, Onco, Gynecology, Hernia,
GI Endocut, Papillotomy, Polypectomy, Under Water, Urology, Gynec TCRE, Hysteroscopy, Thoracotomy,
Thoracic and Cardiac Surgery. Unit is suitable for all kind of Open, Endoscopic, Laparoscopic and Minimally
Invasive Surgery

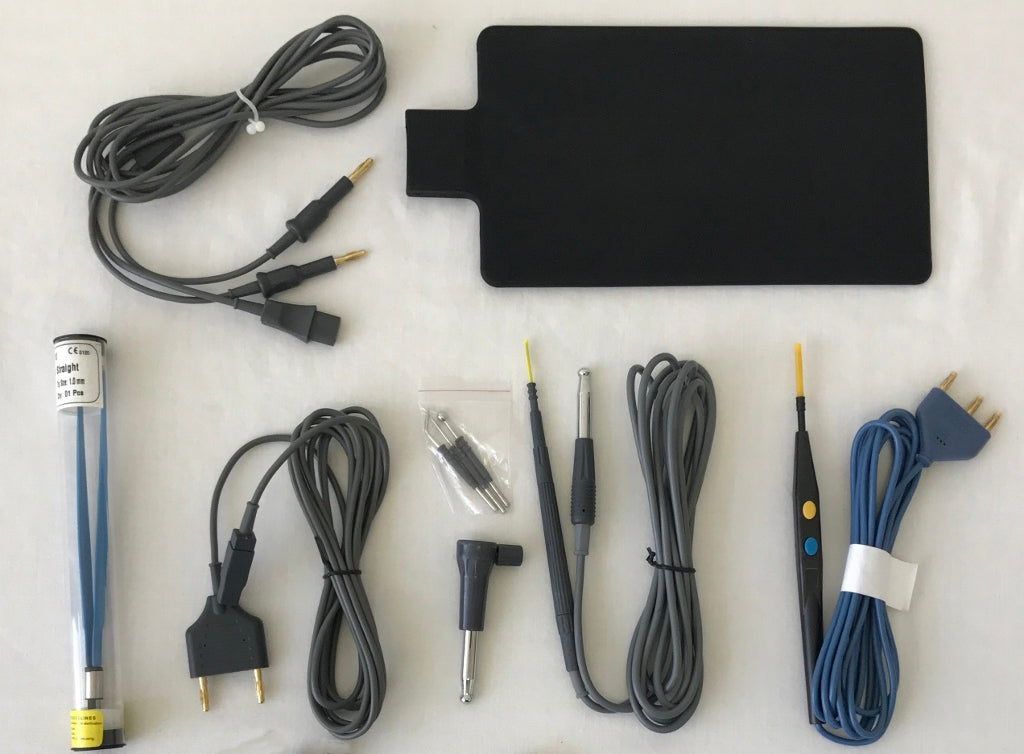

INCLUDES THE FOLLOWING ACCESSORIES:
E108 - POWER CORD

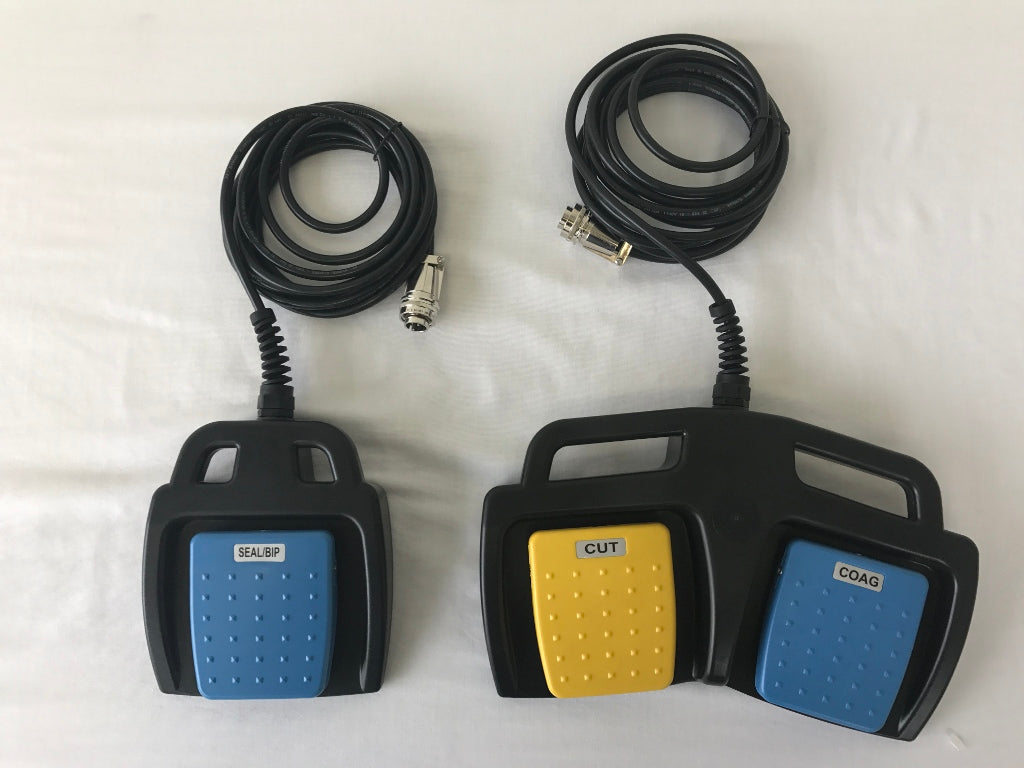

E201 - FOOTSWITCH, SINGLE PADDLE
E202 - FOOTSWTICH, DOUBLE PADDLE
E211 - PATIENT RETURN ELECTRODE - SILICON
E114 - CORD FOR PATIENT RETURN ELECTRODE
E241 - FOOT SWITCHING CHUCK HANDLE, 8MM
E251 - MONOPOLAR HAND SWITCHING PENCIL, REUSEABLE
E267 - BIPOLAR FORCEPS, STRAIGHT, 20CM, 1MM TIP
E119 - CORD FOR BIPOLAR FORCEPS
E141 - UNIVERSAL ADAPTOR
E151, E153, E154 - SET OF ELECTRODES (NEEDLE, BALL, ANGLED BLADE)
