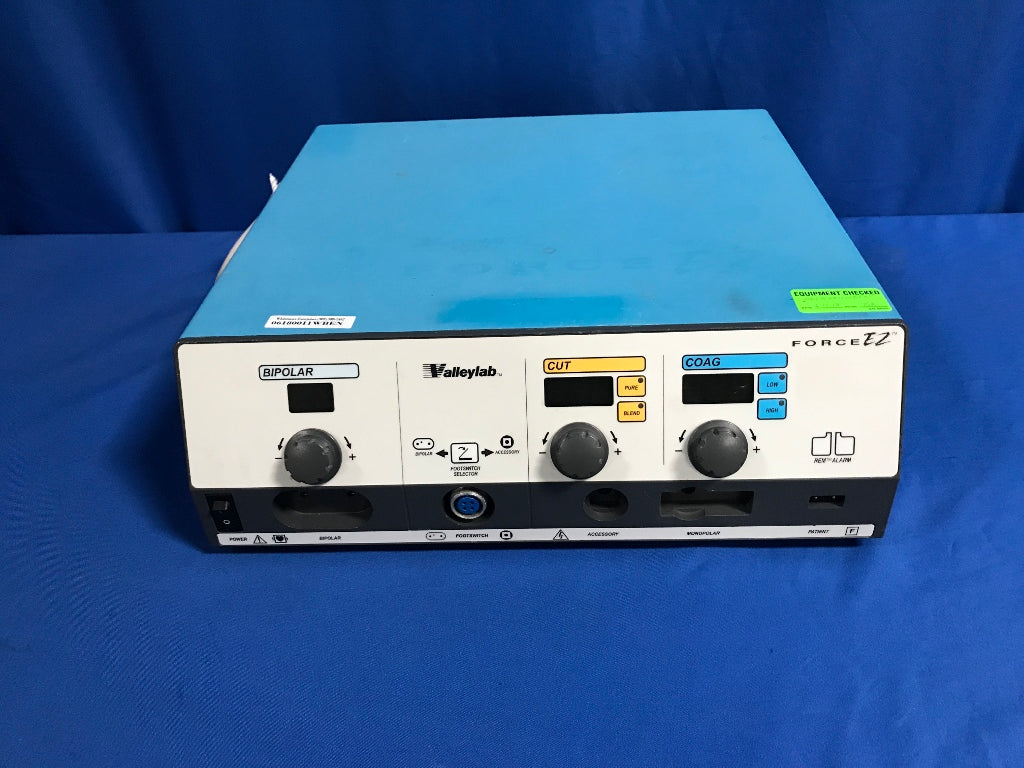

VALLEYLAB FORCE EZ-C ESU CONSOLE

ValleyLab Force EZc Electrosurgical Generator Specifications

• Output Waveforms:
  • Bipolar: 470 kHz sinusoid.
  • Monopolar Cut:
    • Pure: 393 kHz sinusoid.
    • Blend: 393 kHz bursts of sinusoid, recurring at 27 kHz intervals. 50% duty cycle envelope.
  • Monopolar Coag:
    • Desiccation:
      • Low 1: 240 ± 40 kHz sinusoid recurring at 39 kHz. 8% duty cycle.
      • Low 2: 393 kHz sinusoid.
      • Low 3: 393 kHz sinusoid.
    • Fulguration:
      • High 1: 470 ± 40 kHz damped sinusoidal bursts with a repetition frequency of 57 kHz.
      • High 2: 470 ± 40 kHz damped sinusoidal bursts with a repetition frequency of 30 kHz.
• Input Power Requirements:
  • 110 - 120 VAC.
  • Operating Range: 85 - 140 VAC.
  • Max Current Cut: 8.0 A.
  • Max Current Coag: 4.2 A.
• Weight: 15 lbs (6.8 kg).
• Dimensions: 5" (H) x 16" (W) x 15.6" (L) (12.7 cm x 40.6 cm x 39.5 cm).
