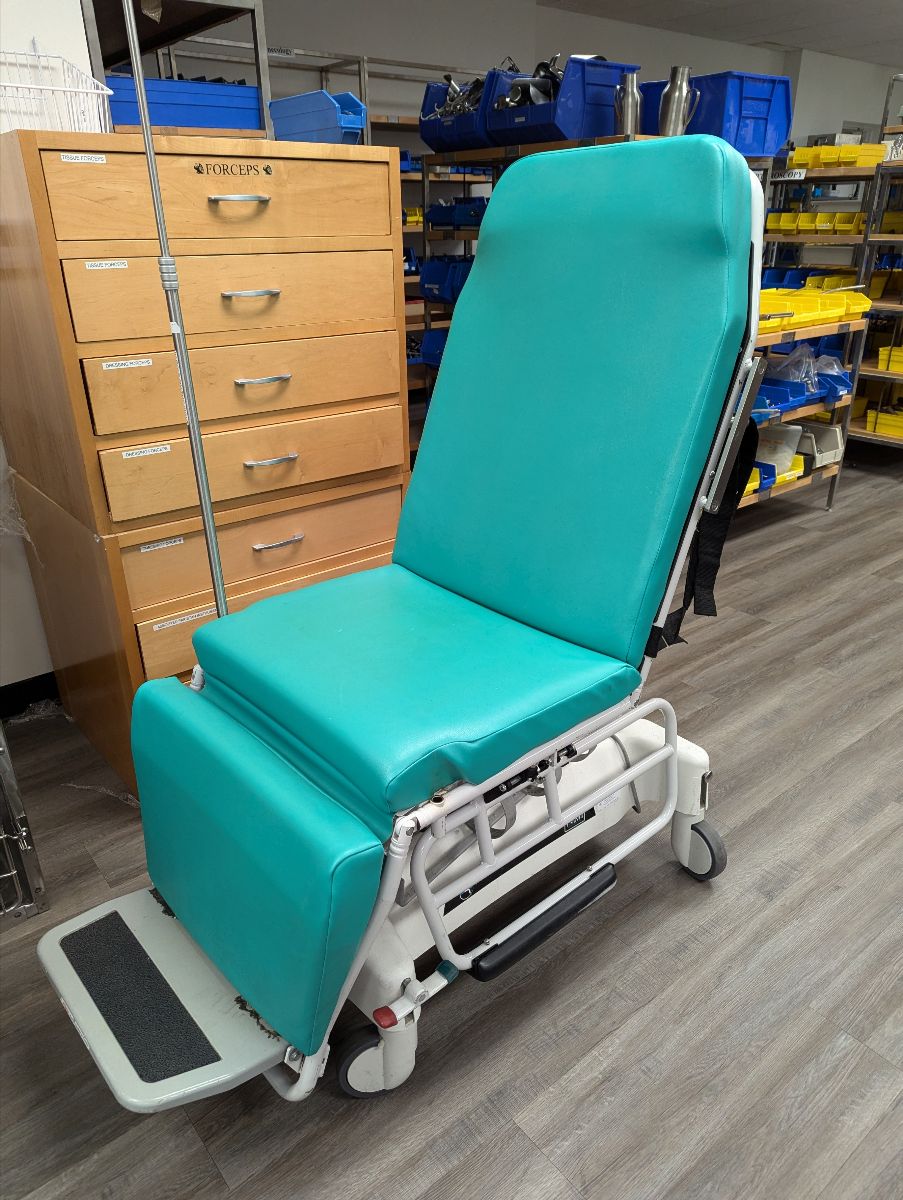

TRANSMOTION MEDICAL TMM4 ELECTRIC MULTI-PURPOSE STRETCHER CHAIR

TRANSMOTION MEDICAL TMM4 ELECTRIC MULTI-PURPOSE STRETCHER CHAIR

Height Range: 25"- 33"
Over All Width: 30"
Surface Length: 77"
Weight Capacity: 500Lbs
Chair weight: 205Lbs*

Maximum Patient Weight: 500 lb (227 kg)
Seat Height - Low: 24.3” (61.7 cm)
Seat Height - High: 32.2” (81.8 cm)
Back Height: 33.75” (85.73 cm)
Overall Chair Height, Low 54” (137 cm)
Overall Chair Height, High 62” (157 cm)
Seat Width 24” (61 cm)
Overall Width (rails up) 30” (76 cm)
Overall Width (rails down) 24” (61 cm)
Patient Surface Length (without “F” option) 72” (195 cm)
Side Rail Length 27.6” (70.1 cm)
Backrest Articulation Range 0° - 86°
Trendelenburg** 20° / 5° Reverse
Radiolucent Window (width x height) 20” X 25.5” (51 cm X 65 cm)
Wheelbase (length X width) 33” x 20” (84 cm x 51 cm)
