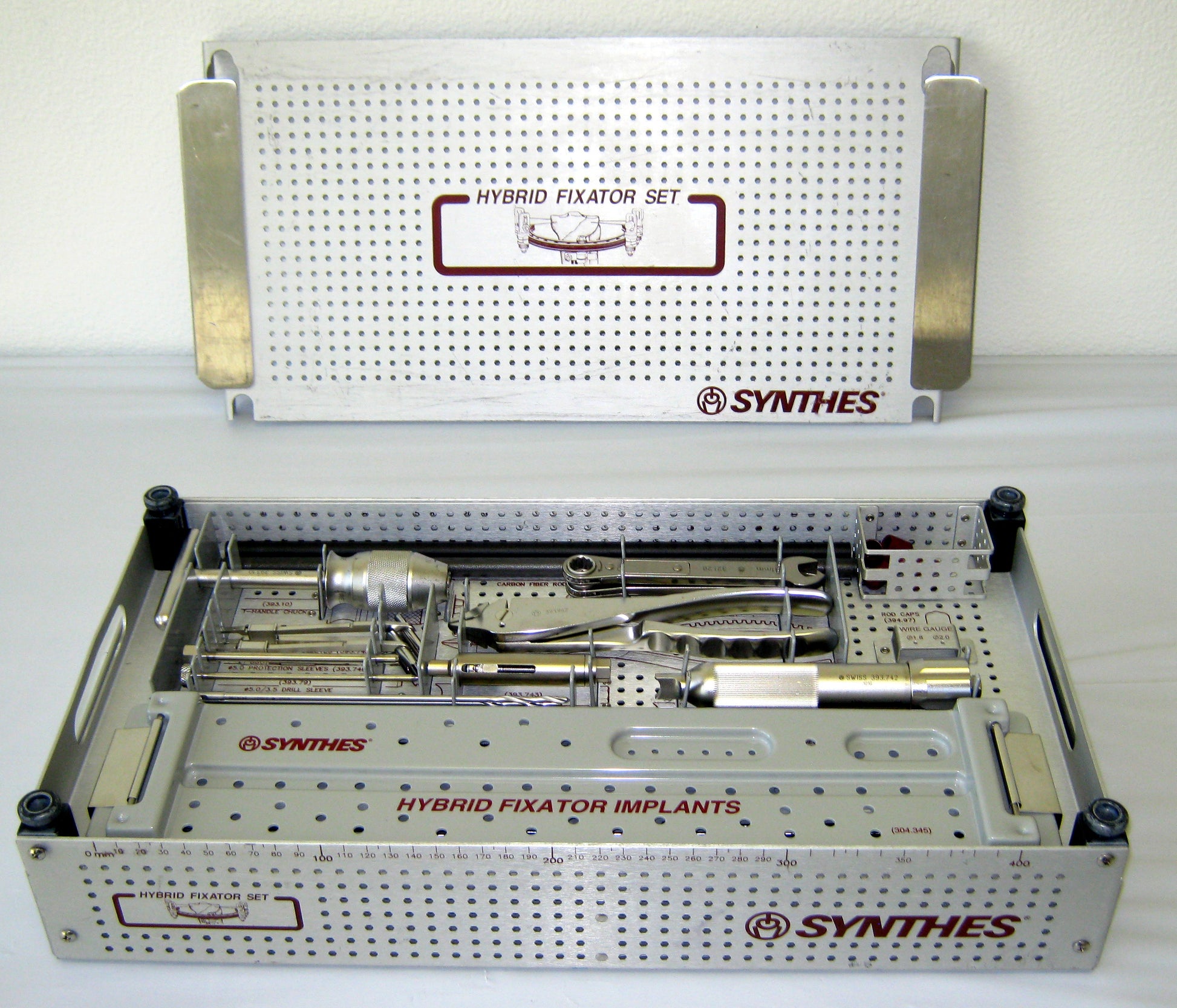

Synthes 115.940 Hybrid Fixator Universal Set

Synthes 115.940 Hybrid Fixator Universal Set

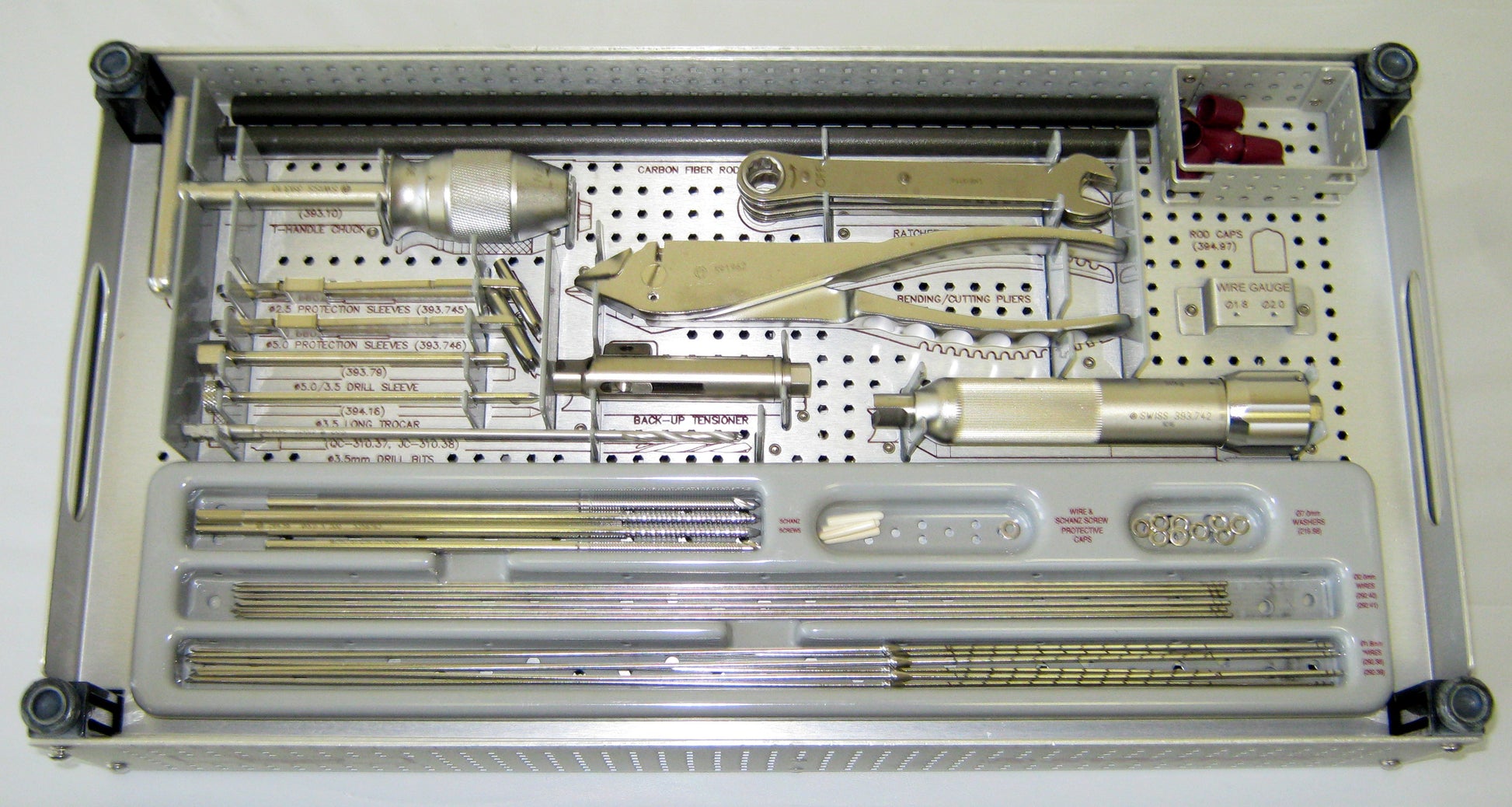

Instruments Included:
1 -  Universal Chuck With T-Handle (393.10)
1 -  Bending/Cutting Pliers (391.962)
2 -  Ratchet Wrench, 11mm Width Across Flats (321.20)
1 -  Wire Tensioner (393.742)
1 -  Back-Up Wire Tensioner (393.743)
1 -  Split Tissue Protection Sleeve, 2.5mm (393.745)
1 -  Split Tissue Protection Sleeve, 5.0mm (393.746)
1 -  5mm/3.5mm Drill Sleeve, 110mm (393.79)
1 -  3.5mm Trocar, 110mm (394.16)
2 -  3.5mm Drill Bit, 195mm/170mm, Quick Coupling (310.37)
1 -  Graphic Sterlization Case (304.340)

Implants Included:
2 -  5.0mm Schanz Screw, 200mm (294.56)
2 -  5.0mm Self-Drilling Schanz Screw, 175mm (294.785)
6 -  2.0mm Spade-Point Reduction Wire, 400mm Length (292.39)
6 -  2.0mm Spade-Point Wire, 350mm Length (292.38)
4 -  Protective Cap For 1.8mm And 2.0mm Wires (392.18)
10 - 7mm Washer (219.98)
1 -  Plastic Sterlization Case (304.345)

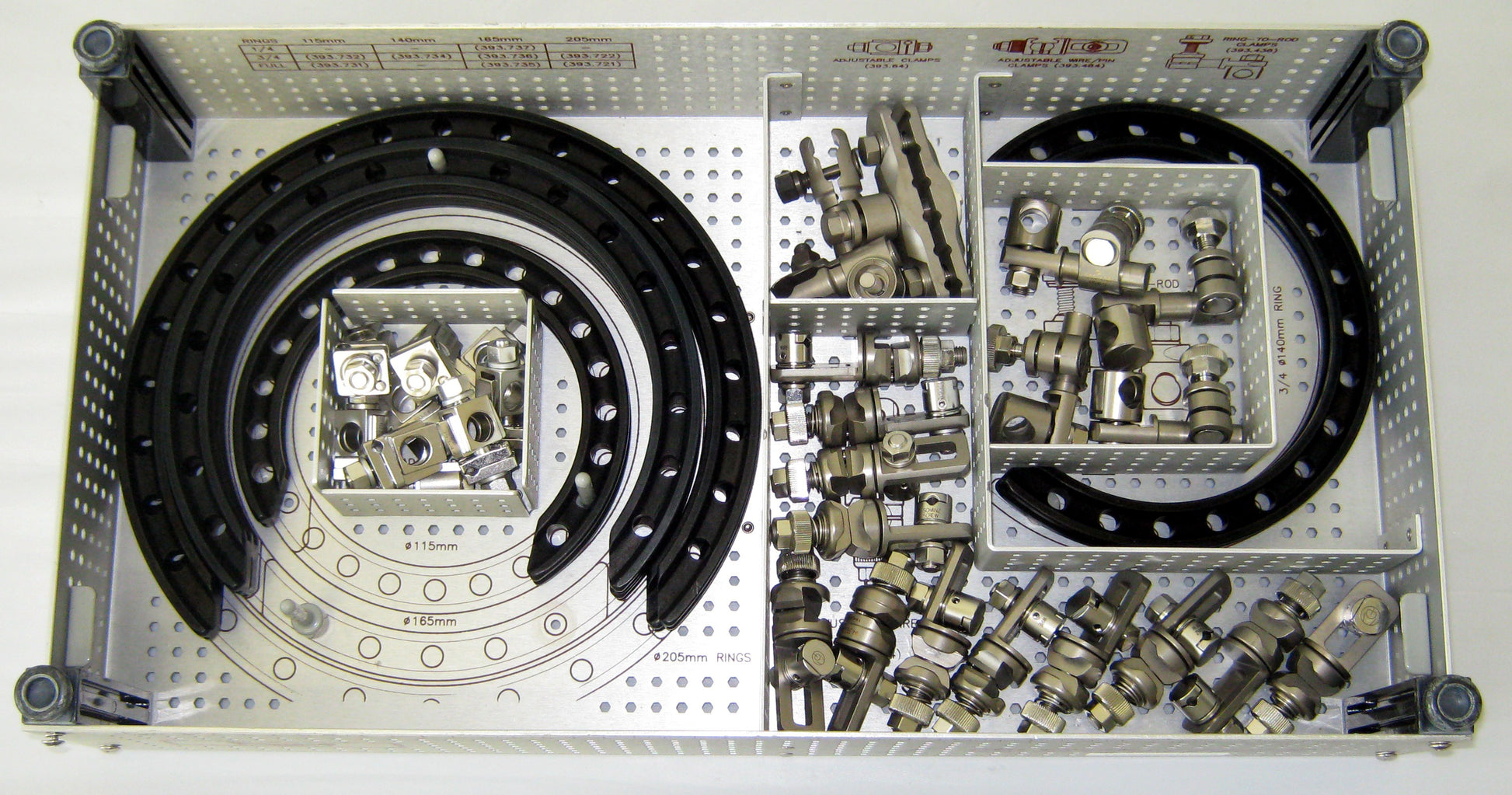

Fixation Material Included:
2 -  11mm Carbon Fiber Rod, 350mm (394.86)
6 -  Protective Cap, For 11mm Rods And Bars (394.97)
12 -  Adjustable Wire/Pin Clamp (393.464)
4 -  Ring-To-Rod Clamp (393.436)
4 -  Adjustable Clamp (393.44)
5 -  Adjustable Clamp (393.64)
1 -  Multi-Pin Clamp (393.751)
1 -  Rod Attachment For Multi-Pin Clamp (393.751)
1 -  3/4 Ring, 115mm Inner Diameter (393.732)
1 -  3/4 Ring, 140mm Inner Diameter (393.734)
2 -  3/4 Ring, 165mm Inner Diameter (393.736)
2 -  3/4 Ring, 205mm Inner Diameter (393.722)
