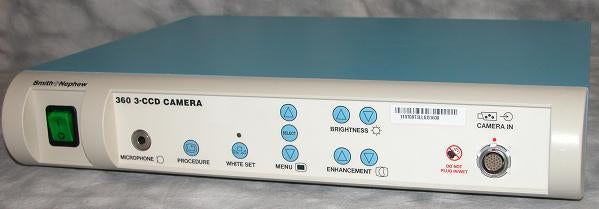

SMITH & NEPHEW 360 3-CCD CAMERA DVI OUT DIGITAL ZOOM CAPABILITY DIGITAL VIDEO OUTPUTS (DVI, SDI, AND DV) HERMES-READY FOR CENTRAL CONTROL COMPATIBILITY WITH SMITH & NEPHEW’S PROGRESSIVE SCAN AND INTERLACED CAMERA HEADS CUSTOMER PROGRAMMABLE PROCEDURE SETTINGS DEDICATED PROCEDURE SETTINGS FOR ARTHROSCOPY, LAPAROSCOPY, CYSTOSCOPY, AND ENT RESOLUTION HORIZONTAL: 800 TV LINES (RGB OR Y/C) VERTICAL: 450 LINES (PROGRESSIVE SCAN MODE) DISPLAY: 1280 X 1024** RGB VIDEO OUTPUT ONE VIDEO OUTPUT 1VP-P, RGB AND SYNC INTO 75 ?, BNC COAXIAL CONNECTORS (INTERLACE/PROGRESSIVE SWITCHABLE) Y/C VIDEO OUTPUTS TWO Y/C VIDEO OUTPUTS, COMBINED LUMINANCE/CHROMA SIGNAL INTO 4-PIN MINI-DIN PLUG IEEE-1394 OUTPUT (360 ONLY) ONE IEEE-1394 DIGITAL VIDEO OUTPUT, 4-PIN CONNECTOR; PROVIDES CONTINUOUS DV-FORMATTED (5:1) COMPRESSED 25 MB/SEC DATA RATE SERIAL DIGITAL INTERFACE (360 ONLY) ONE SERIAL DIGITAL INTERFACE (SDI) WITH 4:2:2 COMPONENT DIGITAL VIDEO OUTPUT ON BNC CONNECTOR DIGITAL VISUAL INTERFACE (360 ONLY) TWO DIGITAL VISUAL INTERFACE SUPPORTING DVI DIGITAL (DVI-D) SINGLE-LINK INTERFACES ON 29 PIN DVI-I CONNECTOR HERMES PORT RS 232, ONE USB TYPE B CONNECTOR
