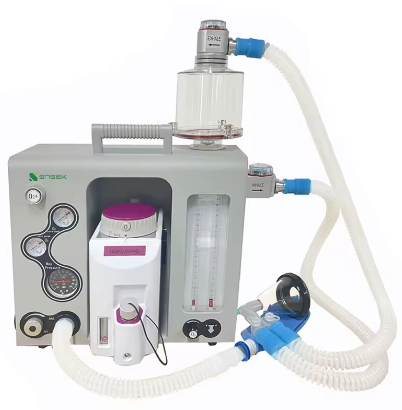

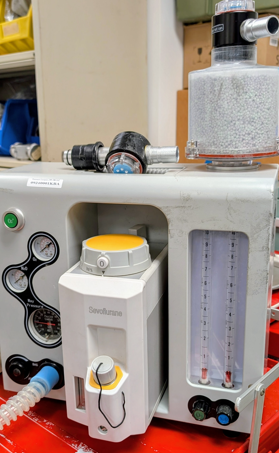

PORTABLE VETERINARY ANESTHESIA MACHINE

PORTABLE VETERINARY ANESTHESIA MACHINE
SPECIFICALLY DESIGNED FOR SURGICAL LOCATIONS WHEREVER SPACE IS LIMITED, IDEAL FOR OFFICE BASE ANESTHESIA
NO ELECTRICITY WILL BE NEEDED, ONLY MANUAL OPERATION
VENTILATION MODE: CLOSED, SEMI-CLOSED, SEMI-OPEN
CLASSICAL CO2 CIRCLE ABSORBER IS WITH 1 CANISTER, LOW RESISTANCE, MINIMUM GAS LEAKAGE, 60CMH2O PEAK PRESSURE PROTECTION

SPECIFICATION
VOLUME (MANUAL MODE): 20 -1500ML
GAS SUPPLY: O2+N2O: 0.25 -0.65MPA
FLOWMETER: O2 : 0.1 -10L/M,N2O: 0.1 -10L/M
APL VALVE: 0.5 -6.0KPA
O2 FLUSH: 25 -75L/MIN.
CO2 CANISTER: 1000ML
