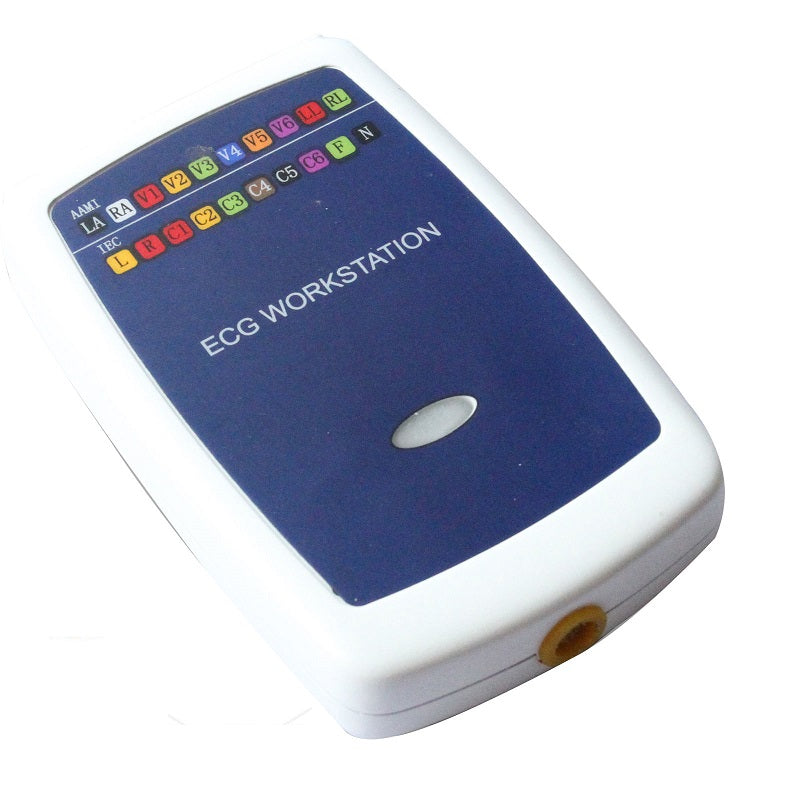

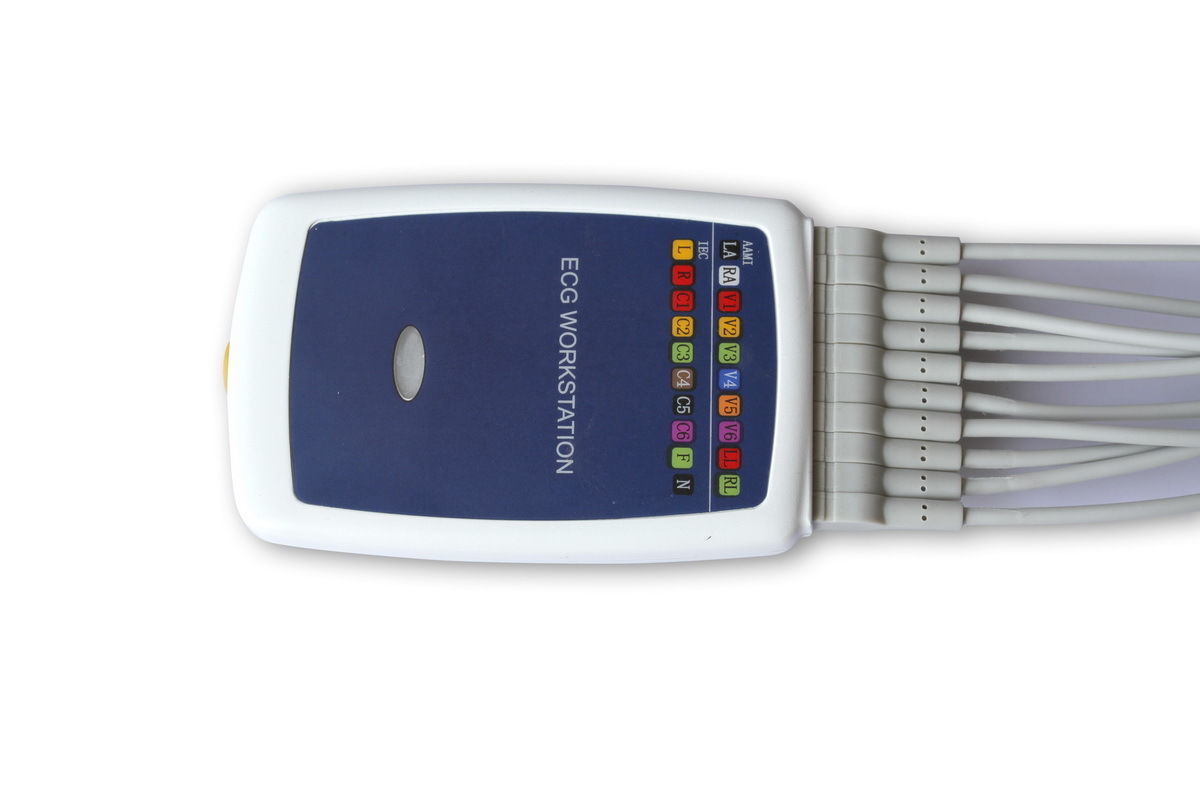

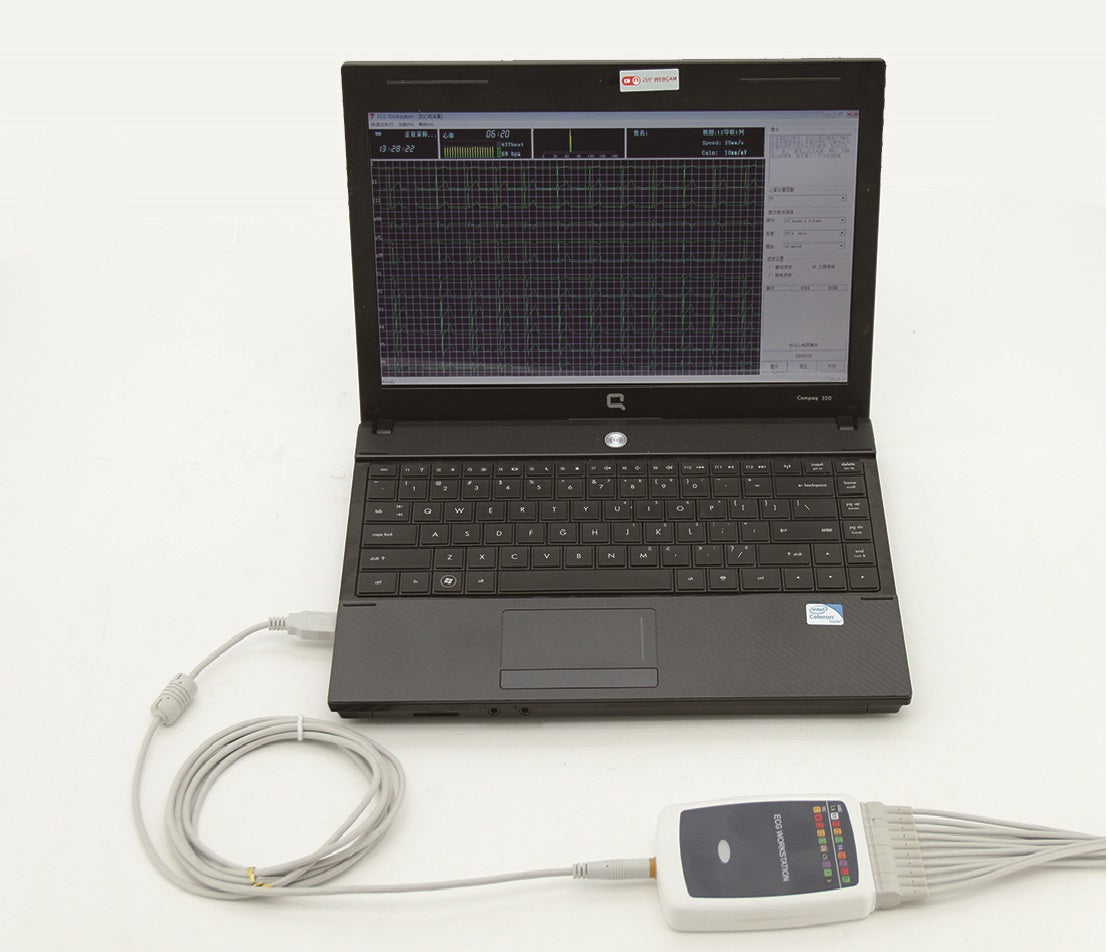

New Whittemore 12-lead ECG workstation, PC based USB ECG Recorder

Performance
HR display range: 30bpm~300bpm, error: 30bpm~100bpm, ±1bpm; 100bpm~ 300bpm, ±1%.
Sampling frequency: max. 1000Hz
Sampling accuracy: max. 24 bits
Lead: Standard 12 leads
Input loop current：≤ 0.1μA
CMRR: >60dB, >100dB (with filter)
Amplitude frequency characteristic: set 10Hz as benchmark, 0.05Hz~150Hz (-3dB~+0.4dB)
Noise level: ≤15μVp-p
Safety type: Class II Type CF with defibrillation protection

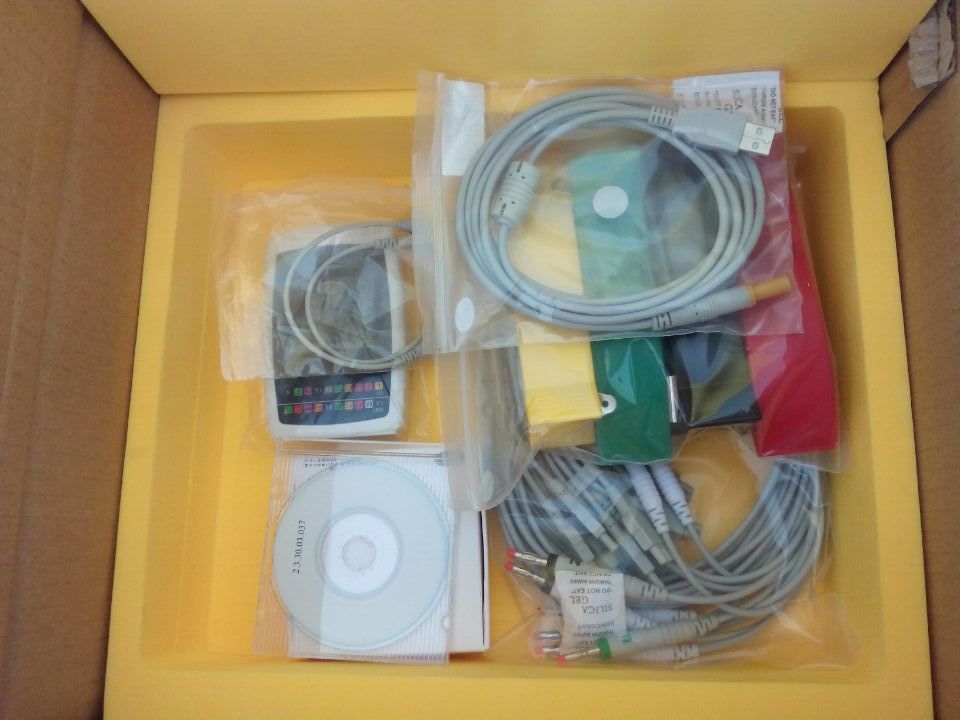

Accessories
Ground wire 1pc
ECG Workstation patch cord 2pcs
ECG Workstation data transmission line 1pc
ECG Workstation lead cable 1pc
Limb electrode clamp 1 set (4pcs)
Chest electrode 1 set (6pcs)
User manual 1pc
lead wire clip 1pc(2pcs)
