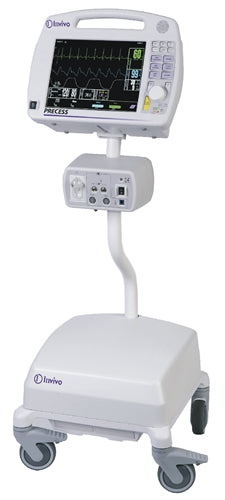

INVIVO PRECESS 3160 MRI MONITOR

INVIVO Precess MRI 3160 Features
The Precess MRI Patient Monitoring System is designed to assist clinicians in monitoring patient vital signs in the dynamic magnetic resonance environment. The Precess combines wireless communication, radio frequency (RF) shielding, and digital signal processing (DSP) to address the challenges associated with patient monitoring in the MR environment. The Precess provides accurate, continuous, and reliable performance during MRI applications in a cost‐efficient package.
    Integral color LCD display for patient information
    Intuitive graphical user interface
    Colored waves and large numerics
    Portable 8‐hour battery
    CRD printer (optional)
    Wireless remote printing to CRD (optional)
    Simultaneous display of up to 8 parameters, and 6 waveforms and associated values
    Visual and audible alarm signals, pulse tones, and system status messages
INVIVO Precess MRI 3160r Specifications
Height
    Cart: 48.5 ± 0.5 inches (123.2 ± 1.3 cm)
    CRD: 10.4 inches (26.4 cm)
    Wireless ECG module: 4.7 inches (11.9 cm)
    Wireless SpO2 module: 5.5 inches (13.9 cm)
Width
    Cart: 17.5 ± 0.5 inches (44.5 ± 1.3 cm)/li>
    CRD: 15.3 inches (38.9 cm)
    Wireless ECG module: 2.5 inches (6.4 cm)/li>
    Wireless SpO2 module: 2.5 inches (6.4 cm)
Inspiration time (Ti)
    0.11 to 10 s (adults)
    0.1 to 10 s (pediatric patients, neonates)
Depth
    Cart: 17.5 ± 0.5 inches (44.5 ± 1.3 cm)
    CRD: 4.6 inches (11.7 cm)
    Wireless ECG module: 0.91 inches (2.3 cm)
    Wireless SpO2 module: 0.91 inches (2.3 cm)
Weight
    Cart: 75 ± 0.5 lbs (34 ± 0.2 Kg)
    CRD: 20 lbs (9.1 Kg)
    Wireless ECG module: 5.4 oz (158.8 g)
    Wireless SpO2 module: 5.4 oz (158.8 g)
