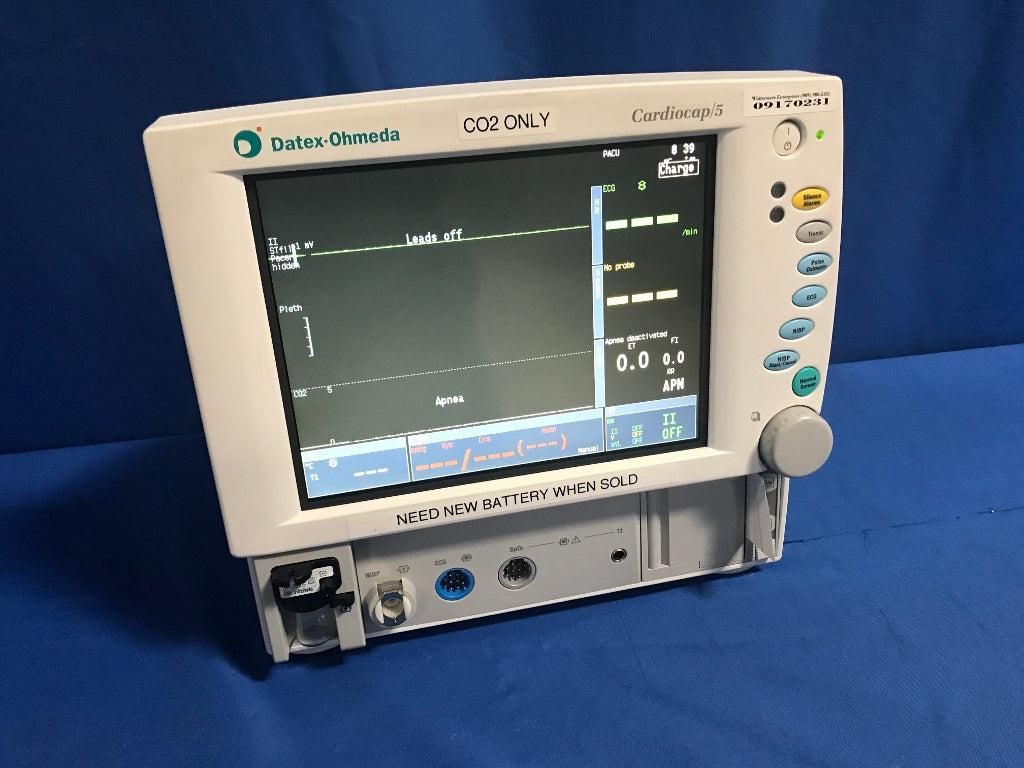

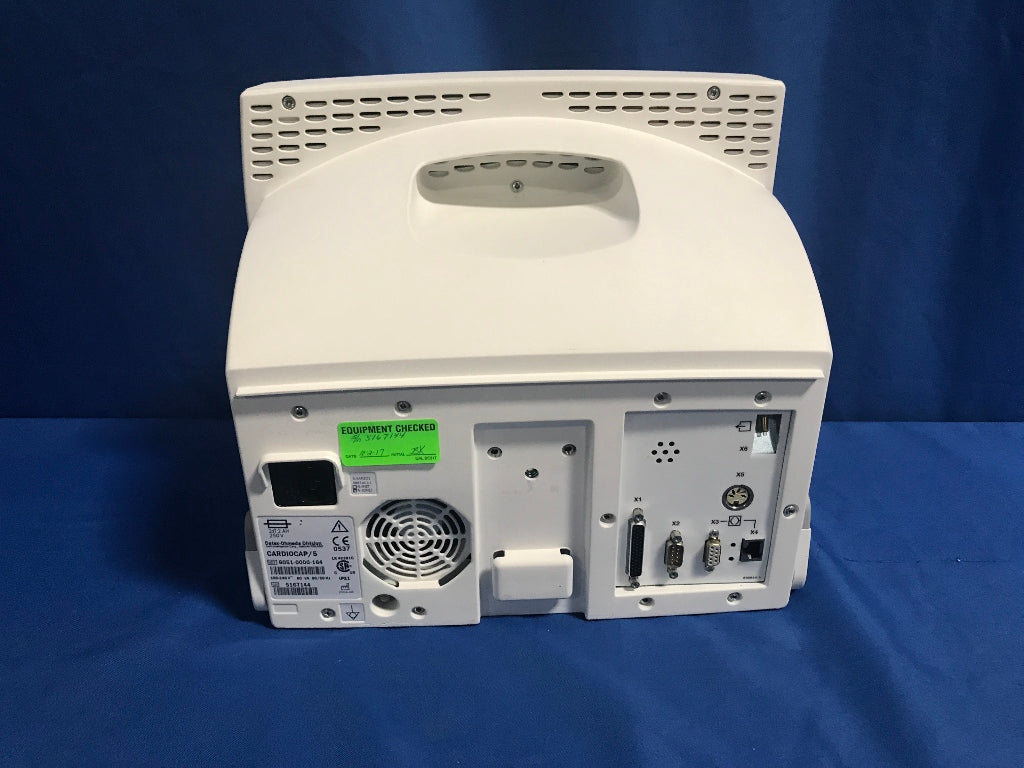

Datex Ohmeda Cardiocap 5 Patient Monitor WITH CO2

DATEX OHMEDA CARDIOCAP 5 PATIENT
ANESTHESIA MONITOR WITH ECG, SPO2,
CO2, TEMP 2, NIBP, IBP, ALARMS, RECORDER

ALARMS:
-  ADJUSTABLE HIGH AND LOW LIMIT ALARMS

TRENDS:
-  ALL PARAMETERS, SAMPLED EVERY 5 MINUTES,
   AND AFTER NIBP MEASUREMENT

RECORDER:
-  THERMAL ARRAY, 3 CHANNELS
-  50mm WIDE PAPER

DISPLAY:
-  10.4in LCD ACTIVE MATRIX COLOR
-  UP TO 6 TRACES
-  RESOLUTION 640 x 480 PIXELS

HEMODYNAMICS:
-  ECG 5-LEAD WITH ST ANALYSIS
-  IMPEDANCE RESPIRATION
-  SPO2/PLETH
-  NIBP
-  UP TO TWO INVASIVE BLOOD PRESSURE
-  UP TO TWO TEMPERATURES

AIRWAY GASES:
-  SIDE STREAM CO2
-  PATIENT O2
-  PATIENT N2O

PATIENT SPIROMETRY:
-  TIDAL VOLUME
-  MINUTE VOLUME
-  FLOW AND COMPLIANCE
-  AIRWAY RESISTANCE & PRESSURE

PHYSICAL SPECIFICATIONS:
-  POWER: 100-240 VAC ±10%, 60/50 Hz
-  BACK-UP BATTERY: 15min MINIMUM RUN TIME
   WITH 5 HOUR TYPICAL CHARGE TIME
-  DIMENSIONS: 13in W x 8.7in D x 11.8in H
-  WEIGHT: 24.8 LBS
