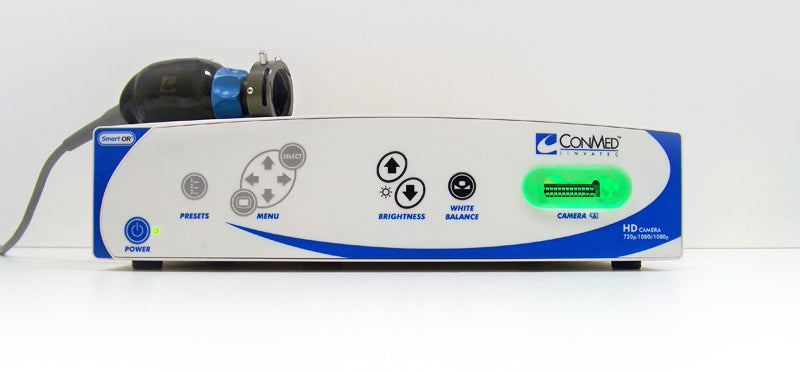

Conmed IM4000R Hd 1080p Camera System

CONMED HD 1080P CAMERA SYSTEM
AUTOCLAVABLE, SMART OR
TRUE HD-1080p
720p, 1080i, 1080p selectable
Upgradeable FPGA platform
True autoclavability
Eye piece, Cartridge, Urology heads available

Typical Operating Requirements:

Input Voltage:

100 - 240 VAC

Frequency:

50/60 Hz

Power Consumption:

80 VA

Fuse:

T 1.0A, 250V

Line Frequency Leakage:

Chassis to Ground (120VAC):

< 100μA

Video Outputs:

1 - Composite - 1.0 Vp-p, Sync Negative, 75 ohms

1 - Y/C: Y - 1.0 Vp-p, Sync Negative, 75 ohms

C - (NTSC) - .286 Vp-p, Burst, 75 ohms

C - (PAL) - .300 Vp-p, Burst, 75 ohms

2 - DVI - I (Digital)

2 - HD-SDI per SMPTE292M (High Definition Television (HDTV)

Native Resolution:

1920 x 1080 Progressive (1080p)

HD Output Resolutions:

1280 x 720, 1920 x 1080

Scanning Frequency:

Vertical - 59.94 Hz (NTSC)

50 Hz (PAL)

Auto Shutter Speed:

1/60 sec. to 1/10,000 sec.

Remote Output:

Isolated contact closure, signal duration = 0.5 ±0.1 sec.

White Balance:

Automatic, triggered by front panel or camera head button

White Balance Range:

2800K to 6500K

Digital Enhancement:

All video outputs

Electronic Zoom:

Up to 1.5x, all progressive video outputs, controllable by

camera head
