CONMED IM4000 HD CAMERA CONSOLE ONLY

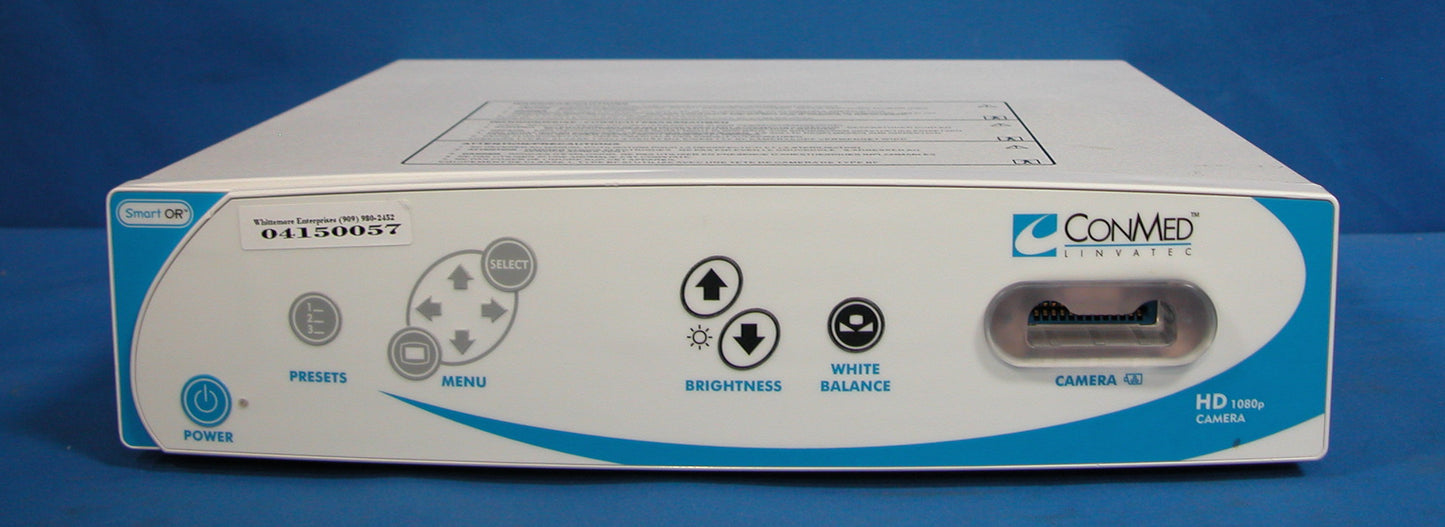

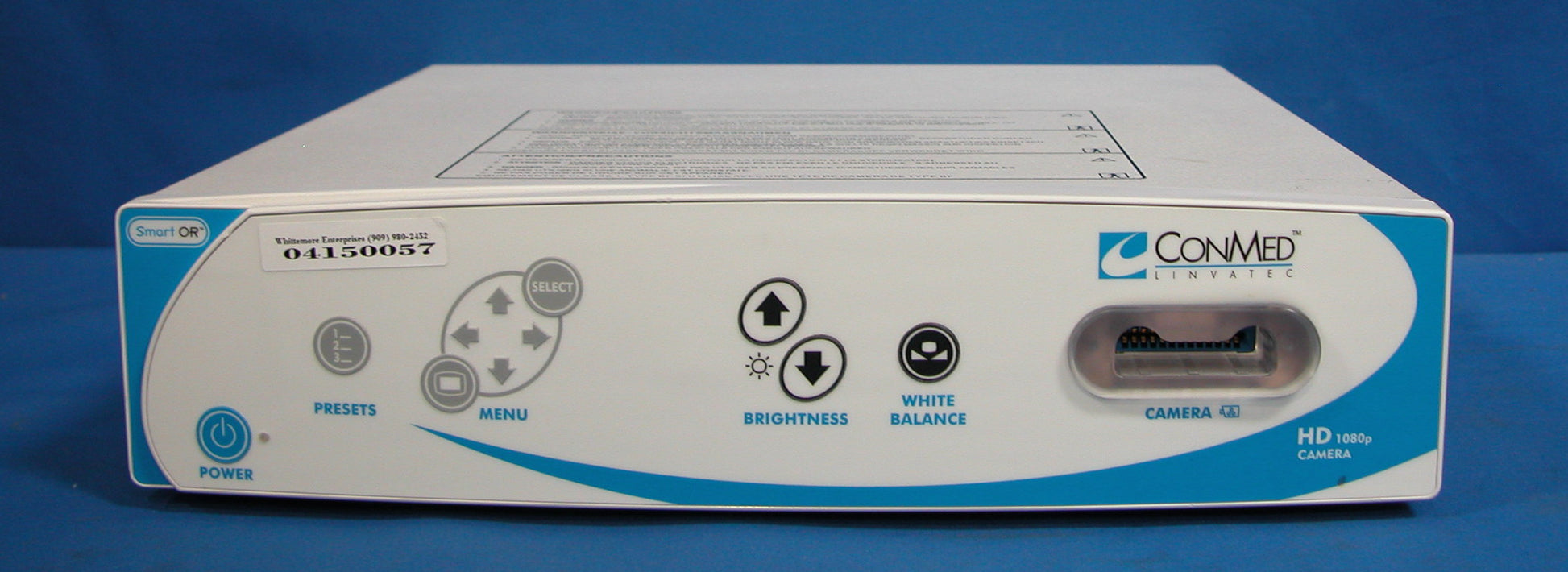

Conmed IM4000 High Definition Camera Console

- 720p, 1080i and 1080p selectable
- Upgradeable FPGA platform
- True autoclavability
- Eyecup, Cartridge and Urology autoclavable camera heads available.

Typical Operating Requirements:
-  Input Voltage:  100 - 240 VAC
-  Frequency:  50 / 60 Hz
-  Power Consumption:  80 VA
-  Fuse:  T 1.0A, 250V
-  Line Frequency Leakage:  Chassis to Ground (120VAC):< 100μA

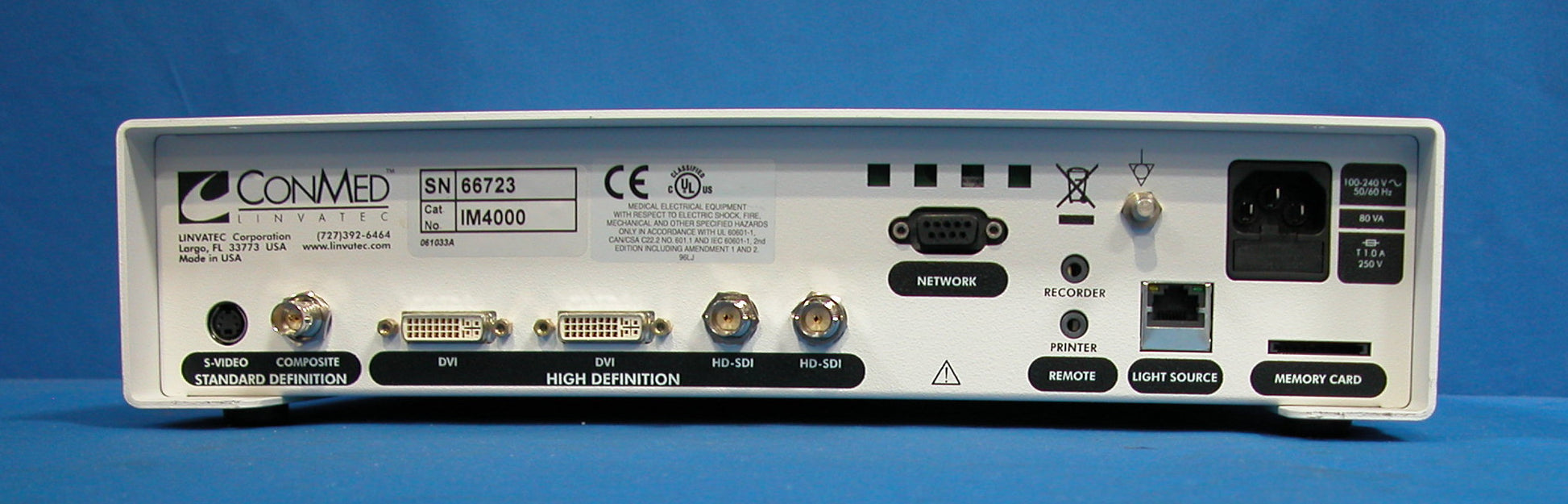

-  Video Outputs:
   1 - Composite - 1.0 Vp-p, Sync Negative, 75 ohms
   1 - Y/C: Y - 1.0 Vp-p, Sync Negative, 75 ohms
   C - (NTSC) - .286 Vp-p, Burst, 75 ohms
   C - (PAL) - .300 Vp-p, Burst, 75 ohms
   2 - DVI - I (Digital)
   2 - HD-SDI per SMPTE292M   (High Definition Television (HDTV)

-  Native Resolution:  1920 x 1080 Progressive (1080p)
-  HD Output Resolutions:  1280 x 720, 1920 x 1080
-  Scanning Frequency:  Vertical - 59.94 Hz (NTSC)  50 Hz (PAL)
-  Auto Shutter Speed:  1/60 sec. to 1/10,000 sec.
-  Remote Output:  Isolated contact closure, signal duration = 0.5 ±0.1 sec.
-  White Balance:  Automatic, triggered by front panel or camera head button
-  White Balance Range:  2800K to 6500K
-  Digital Enhancement:  All video outputs
-  Electronic Zoom:  Up to 1.5x, all progressive video outputs, controllable by camera head
