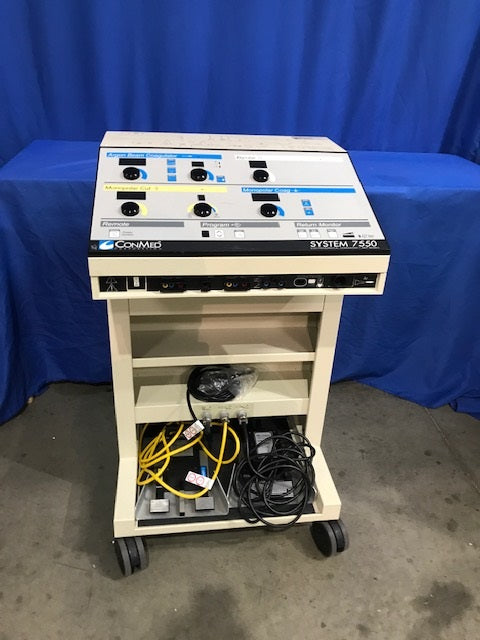

CONMED ARGON BEAM COAGULATOR 60-7550-120
CONMED ARGON BEAM COAGULATOR 60-7550-120
SKU:ESU-C-60-7550-120
Used
Low stock: 1 left
Couldn't load pickup availability
Configuration: Solid State, Isolated Output
Frequency: 461 kHz (Cut, Blend, Pin Point Coag and Bipolar), 420 kHz (Spray Coag), 570 kHz (ABC® Technology)
RF Isolation:<150mA per IEC 60601-2-2
Input: 115V (± 10% at 60Hz 12.5A), 230V (± 10% at 50Hz 6.25A), 100V (± 10% at 50/60Hz 15A)
Cooling: Convection (No fan)
Dimensions: 24”Wx25”Dx41”H, 110 lbs (60.1cmWx63.5cmDx104.1cmH, 49.9kg), without cylinders
Argon Gas Recommendations: 99.9985% purity
Gas Flow: 0.1 SLPM - 10.0 SLPM
Product Specifications
| Mode | Maximum Power (Watts) | Typical Open Circuit Vol. (PP V) | Load (Ohms) |
|---|---|---|---|
| Pure CUT | 300 | 1,700 | 500 |
| Blend 3 | 200 | 2,000 | 500 |
| Blend 6 | 200 | 2,600 | 500 |
| Blend 9 | 200 | 3,400 | 500 |
| Spray COAG | 80 | 9,200 | 500 |
| Pin Point COAG | 120 | 4,800 | 500 |
| ABC® | 150 | 12,000 | 500 |
| Bipolar COAG | 70 | 300 | 100 |
