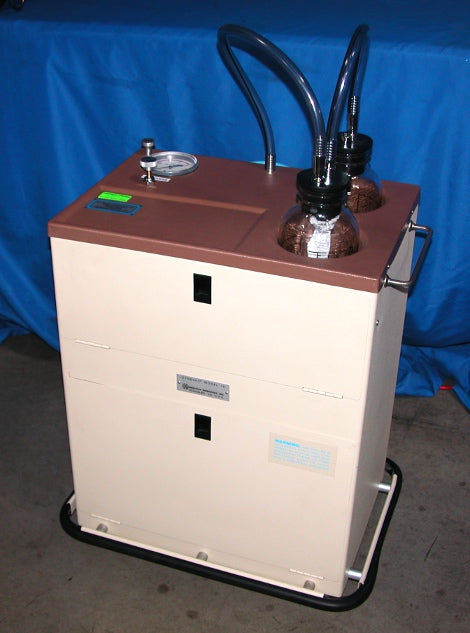

Berkeley SV-15 High Volume Suction Pump

Berkeley SV-15 High Volume Suction Pump
-  Synevac Vacuum Curettage System 15

-  Equipped with 2 cabinet doors.  The bottom door allows easy access to the pump, motor and overflow safety trap while the top door opens to a storage area for accessory items.  The collection bottles are recessed in the molded plastic cabinet top.

-  Explosion-proof motor & switch, conductive tubing and casters.
-  Meets all requirements for Class 1 Group C listing
-  For use in situations where possibility of explosion atmosphere exists.

-  Motor Rating:  1/4 hp Thermal Protector
-  Operating Voltage:  115V/230V - 60/50Hz
-  Power Plug:  Hospital Grage
-  Vacuum Pump:  Two-staged Diaphragm, Oil-less
-  Vacuum Range:  0-73 + cmHg (0-29 + inHg) at sea level
-  Free Air Displacement:  Pump:  127 liters/min (4.5 CFM)
-  Minimum Time to Working Negative Pressure:  Two-Bottle System (1200cc Fill-Line)
    0 - 60 cmHg - 4 seconds
    0 - 70 cmHg - 8 seconds
    0 - 73 + cmHg - 13 seconds

Dimensions:  20in W x 14in D x 27in H
Weight:  106 lbs. (48 kg)
