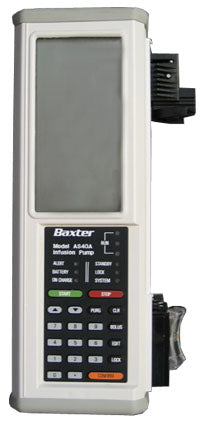

Baxter As40a Auto Syringe Infusion Pump

BAXTER AS40A AUTO SYRINGE INFUSION PUMP

CATALOG CODE:
- 1M8565 = WITH DRUG LIBRARY OPTION
- 1M8560 = WITHOUT DRUG LIBRARY OPTION

- DIMENSIONS: 3.4in x 2.6in x 10in
- WEIGHT: 2.75 lbs
- ACCURACY: +/- 3% (NOT INCLUDING SYRINGE
TOLERANCE)
- SYRINGES:
- B-D PLASTIK: 1, 3, 5, 10, 20, 30, 60mL
- MONOJECT: 1, 3, 6, 12, 20, 35, 60mL
- TERUMO: 1, 3, 5, 10, 20, 30, 60mL
- FLOW RATE RANGE: 0.01 mL/hr TO 360 mL/hr
DEPENDANT ON SYRINGE SIZE
- DELIVERABLE VOLUME: THE FULL SYRINGE CAN
BE DELIVERED.
- DATA DISPLAY: SELF-PROMPTING,
MULTI-FIELD LCD (LIQUID CRYSTAL DISPLAY)
- STATUS DISPLAY: NINE-LED (ARRAY
- POWER REQUIREMENT:
- AC: 105-125V, 60Hz (BATTERY CHARGER)
- DC: INTERNAL NICKEL-CADIUM BATTERY PACK
- BATTERY LIFE: 12 HOURS OF OPERATION AT
2mL/hr USING A 60mL SYRINGE, FOLLOWING
A 16 HOUR CHARGE.
- TEMPERATURE RANGE: 0°C TO 45°C (32°F TO
113°F) NOTE: DELIVERY OF HIGH VISCOSITY
FLUIDS AT LOW TEMPERATURES NOT
RECOMMENDED.
- KEYPAD: ELASTOMERIC TYPE,. WITH TACTILE
FEEDBACK
- CONSTRUCTION: HIGH-IMPACT PLASTIC CASE
WITH REMOVABLE ELASTOMERIC PROTECTIVE
BUMPERS. WATER RESISTANT.
