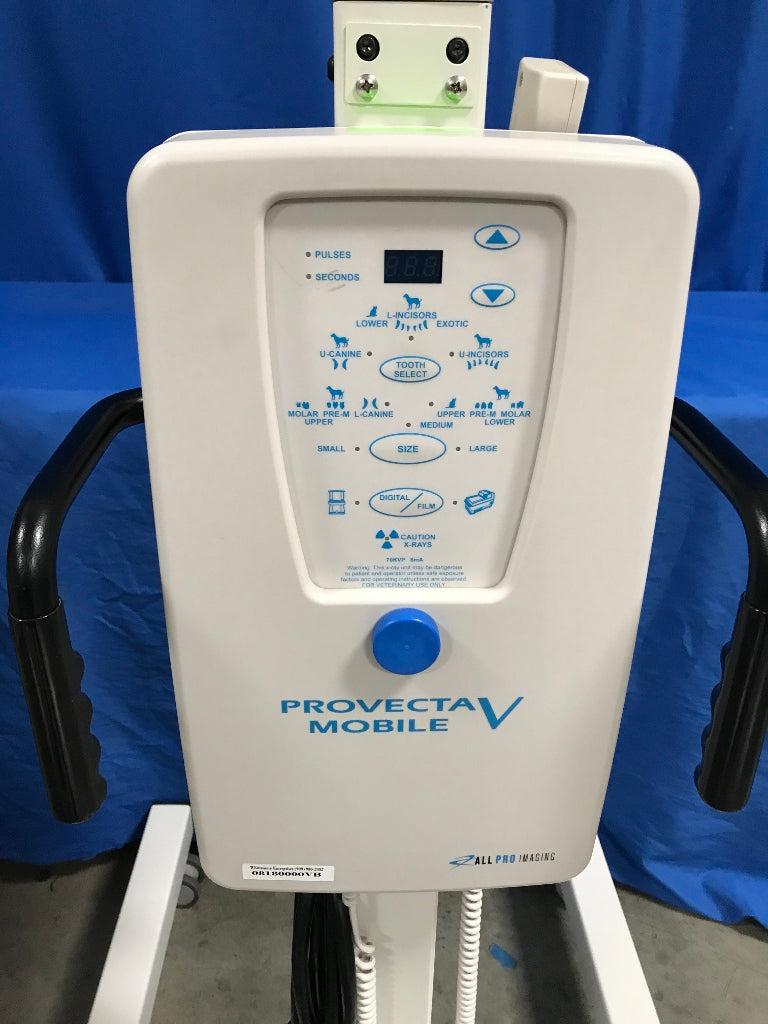

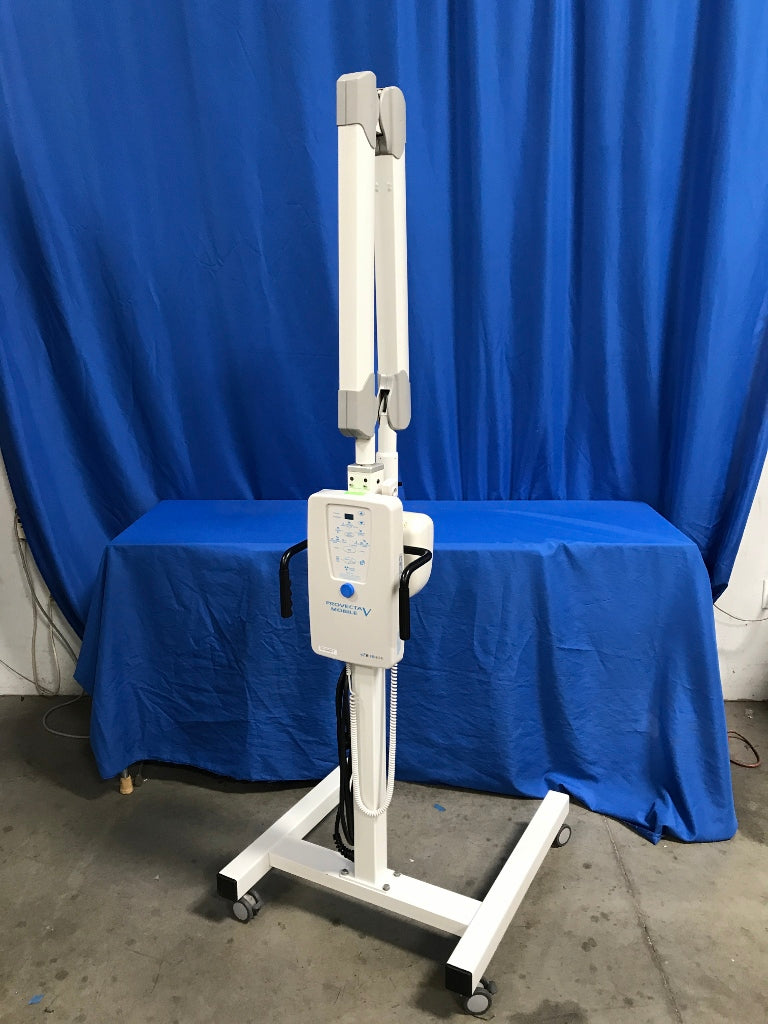

ALLPRO IMAGING PROVECTA V MOBILE VETERINARY DENTAL X-RAY

Technical Features:
Equipment Manufacturer Air Techniques Inc.
IEC 60601-1 Classification Class I with type B applied parts
Degree of protection against ingress of water Ordinary
Equipment is not suitable for use in the presence of flammable anesthetic mixture with air or with oxygen or
nitrous oxide.
Mode of operation Continuous operation with intermittent loading
FDA 21 CFR Classification Class II
Line voltage 110 to 132V
Line frequency 60Hz
Rated current 8.2 Amps
Power consumption 0.8 kVA @ 120V
Line Voltage Regulation <3%
Apparent Resistance of Supply Mains 0.43 ohms
Circuit Breakers 10 Amp
Circuit Board Fuses 10A 250V Ceramic Fast Acting (0.25 x 1.25 IN) and 630mA  250V Fast Acting (5 mm x 20 mm)
Preset exposure times from 0.02 to 3.20 seconds in 44 steps
Anatomic selection 30 pre-set times
Exposure control Microprocessor controlled exposure times, with automatic compensation for line voltage variations

Timer Accuracy on the selected Exposure Time(The value of the operator selected timer setting.) +/- 5% or +/- 33ms of selected Exposure Time (whichever is greater) when the AC input is 120 volts.

Timer Accuracy on the Corrected Exposure Time (The actual time of exposure, indicated on the (whichever is greater) when the AC input is other than Control Panel during emission and determined by the   120 volts. internal algorithm as a function of the line voltage). The range of adjustment is 73% to 149% as the AC line voltage changes within the rated voltage range.  +/- 5% or +/- 33ms of Corrected Exposure Time

X-ray Control dimensions 12.5” H x 8.50” W x 4-5/8” D

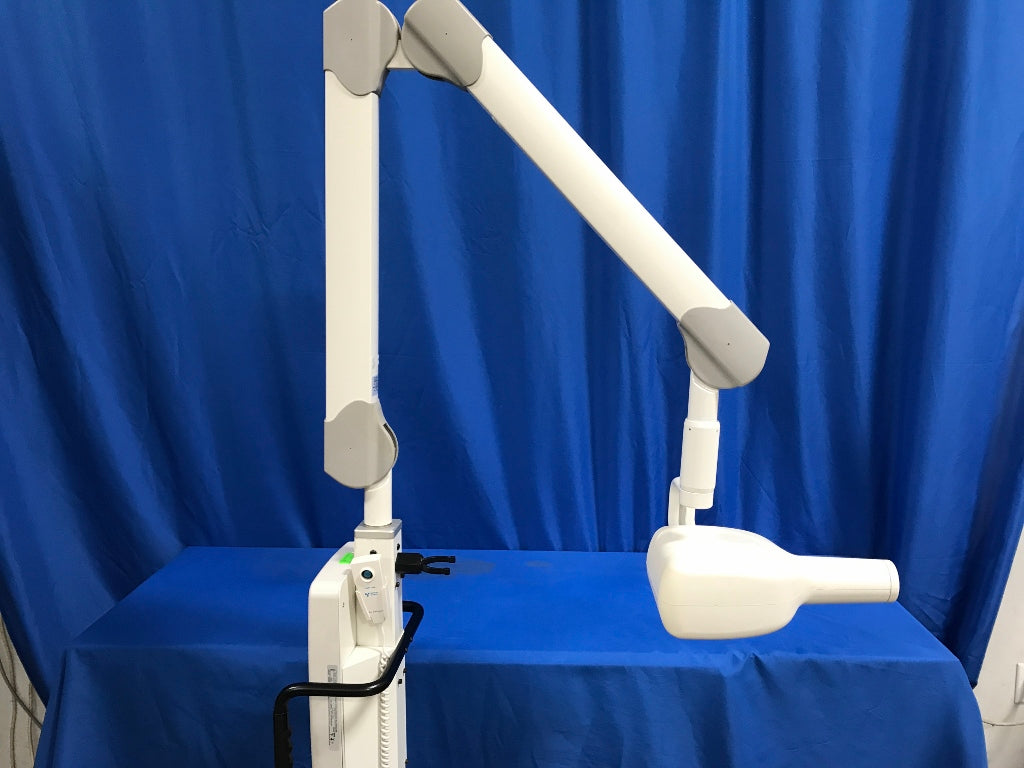

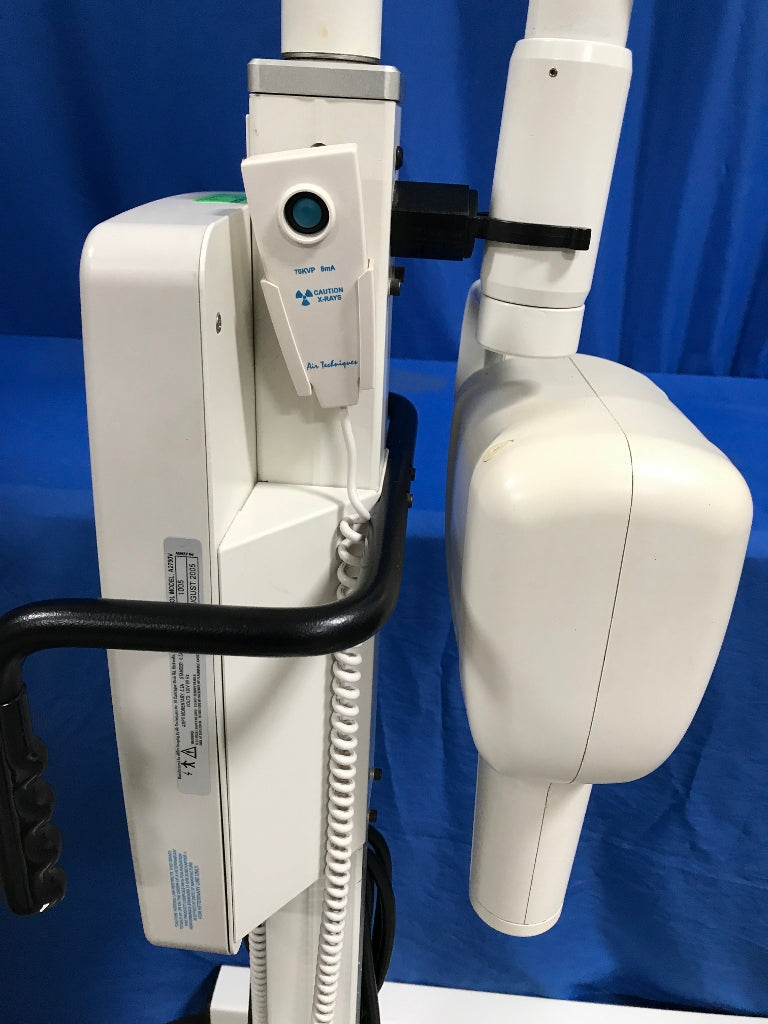

Tubehead Features
Rated output voltage 70 kVp +/- 15% over 110 to 132 VAC
High voltage circuit type 110 to 132 VAC Single phase, self-rectifying
Tubehead current 8 mA +/- 2 mA
Tubehead Power 0.8 kw
Total filtration 2mm Aluminum equivalent @70 kVp
Transformer insulation Oil bath
Cooling Convection
Pre-heating time 100ms
Interval between exposure / duty cycle 32 times X-ray time / 1: 32
Beam Limiting Device Incorporated in Tubehead Assembly (non-removable)
Tubehead Assembly dimensions (less yoke) 5” H x 7.5” W x 15” D
Minimum source to skin distance 20 cm (8”)
Maximum symmetrical radiation field @ 20 cm (X-ray beam diameter) 2 3/8” (6 cm)
Radiation leakage at 1 m <50 mR/h, duty cycle 1: 32
Technical factors for radiation leakage 70 kVp, 8mA, 3 seconds
